Laboratory Presses

See our Lab section for Rebuilt and New Lab mixers





We have an extremely large and varied range of  Laboratory Presses from 1 Ton to 250 Tons . Lab press , New-used or rebuilt, whatever suits your budget.

 Options for Heated, cooled, programmable pressures and temperatures,  profiling, computer controlled, Data-logging, specialised processes, whatever you need - we can supply a solution.

For more information or a quote - click here   ----  Click on the pictures for more information.

Alpha-Mould

One of our New presses at a  university

30 Ton Floor standing press Pushbutton control for open and close , front table and sliding guard. Fitted with 300mm electrically heated platens 0 - 350c - with cooling

pressure range is 2 to 30Tons'

Fully integrated hydraulics - a simple ' Plug in and and GO' solution for any industry

Alpha-Mould

Click here to enlarge

 Alpha-Mould bench series

40 Ton bench mounted press Pushbutton control for open and close fitted with 400mm electrically heated platens        0 - 350c - options for cooling

pressure range is 10 to 40Tons'

Plug and GO'



Micro-Mould

Click here to enlarge

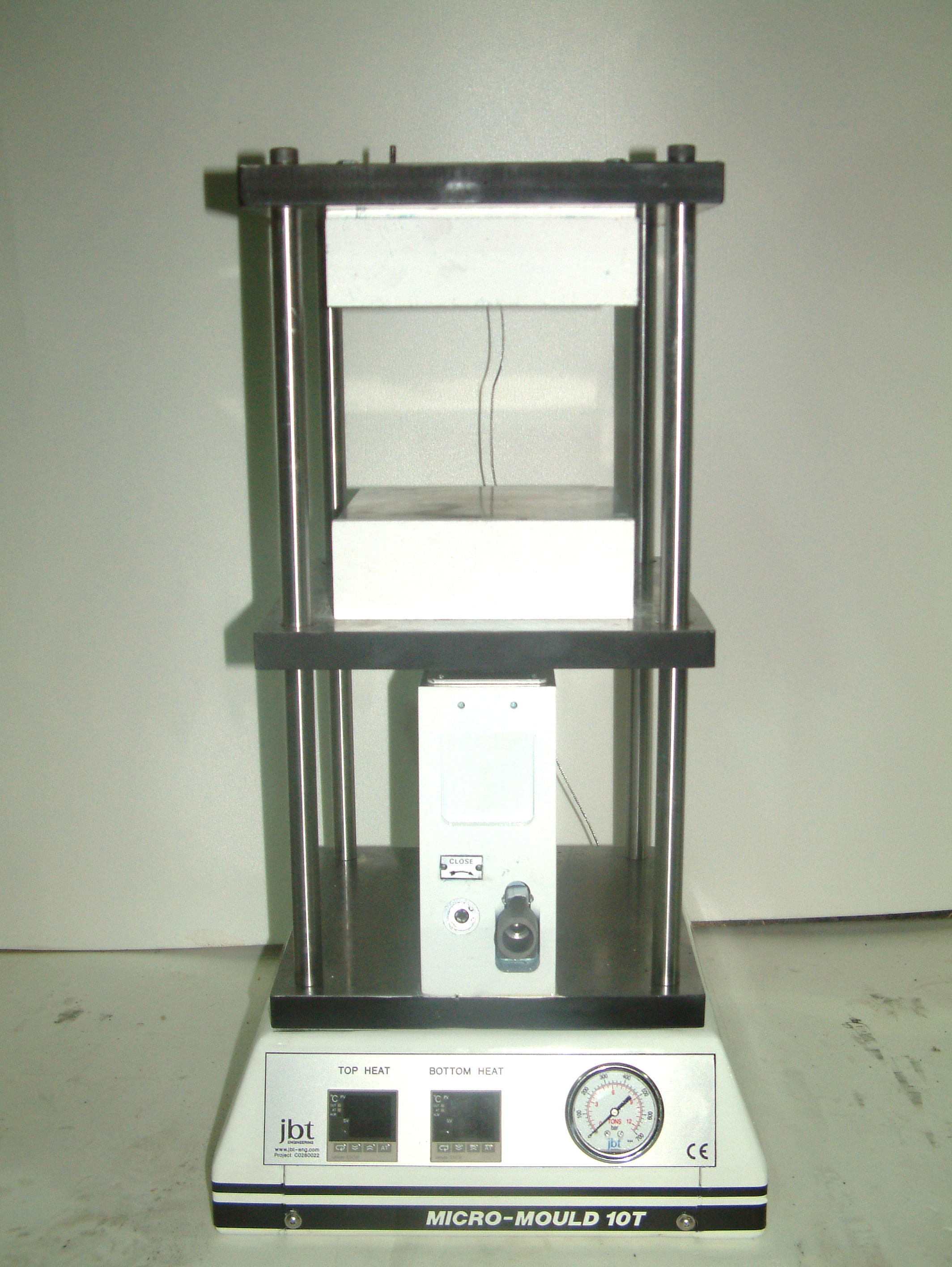

.                   Manual lab press -     .  Micro-Mould bench series with Hand lever control. Electrical heating control   self contained and compact design. Platen sizes from 100mm x 100mm to 300x300mm with variable daylight.  Pressure range 5, 6,10 and 15tonnes



Rebuilt 30T Laboratory press Fully remanufactured in 2011 and as new with full warranty

30t JBT Laboratory press

    300x300mm square heated Platens, Platens are Heated and cooled with air blast .designed for 0 - 280'C but we can fit new high temperature platens 0- 400C if required. This machine is as new. fitted with inbuilt extractor hood, Fully enclosed with front sliding guard, pushbutton / switch control for open and close. Adjustable pressure, Hydraulic pump set built into base of unit, A relly nice press for production, development or the lab.400v 3 phase approx 20Amp.

Simple plug in and go.

.Rebuilt 25Ton Bench mounted Laboratory  Press

Electrically heated platens with water cooling , Platen size is 10"  (250x250mm)  Stroke 150mm Approx Adjustable top Daylight of 0 - 280mm approx 4" dia ram - High and low pressure gauges for accurate pressure control

 Ideal for plastics, composites rubber etc, Excellent condition,  and ready to go . .

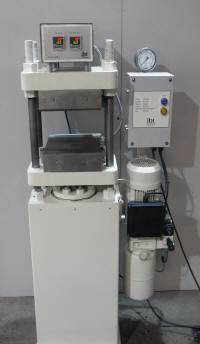

Rebuilt 20Ton Floor standing Laboratory Press

200mm Heated platens,

Pushbutton control for open and close. New electrics and hydraulics temperature range  0-250'C

4" Dia ram. 20 Ton Max. Plugs into standard 3pin wall socket.

we also have one available with a hand-pump call for info

Micro-Mould



400x400mm 20T version of our Micro-mould press - in use at a French Agriculture laboratory. 'Plug and GO'



Alpha-Mould

Click here to enlarge

Advanced version of Automatic lab press ideal for composites - Aerospace research, pharmaceuticals etc Temperature range 0- 500c with cooling and variable pressure / position profiles. Platen sizes from 200x200mm up to 500x500mm -Also available with cooling..



Alpha-Mould

Hot press with Vacuum supplied to world leader in new  battery technology and research . Options include programmable cycle recipes for temperature - pressure - tool etc. Platen sizes 300 sq + 400sq with or without cooling - can be customised to suit your process..



Alpha-Mould



Click here to enlarge

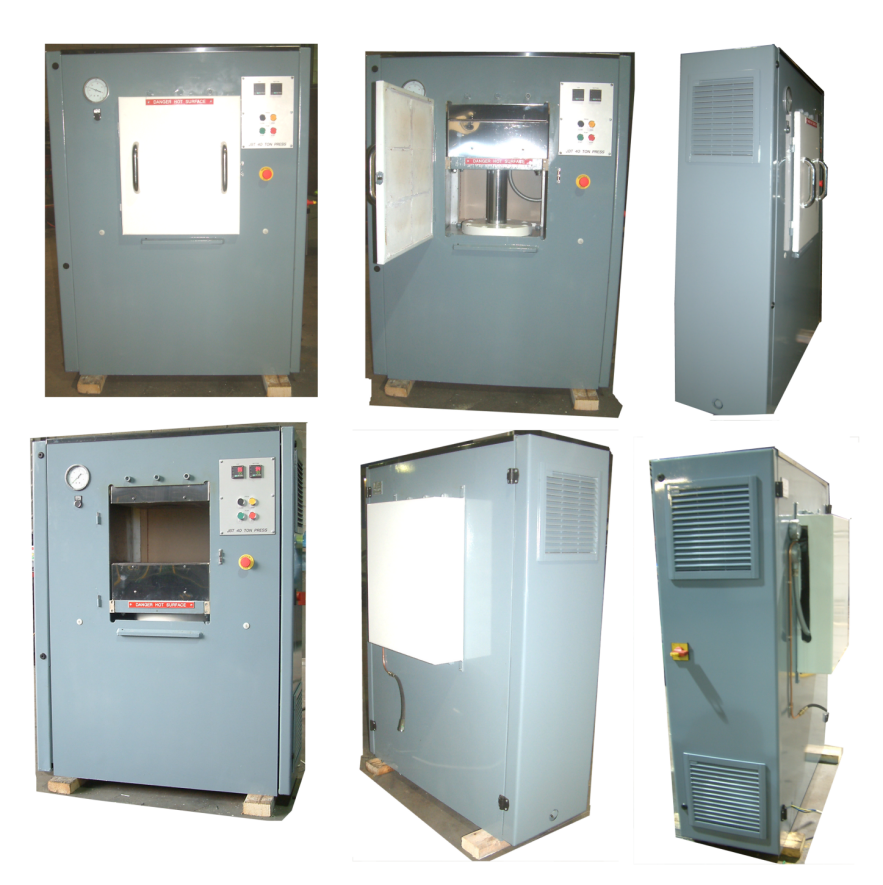

Fully Insulated 40Ton Press temperature range 0 - 600'C with removable door and gas injection into test samples





Used 25T press ex university



Alpha-Mould

'Plug and GO' .

The compact Lab range are Fully Guarded with Nice clean lines - Totally self contained



Alpha-Mould



Click here to enlarge

Fully Insulated 40Ton Press temperature range 0 - 600'C with removable door and gas injection into test samples



Alpha-Mould

Click here to enlarge

Advanced version of Automatic lab press ideal for composites - Aerospace research, pharmaceuticals etc Temperature range 0- 500c with cooling and variable pressure / position profiles. Platen sizes from 200x200mm up to 500x500mm -Also available with cooling



 .Alpha-Mould

Automatic version of lab press with programmable cycle recipes for temperature - pressure - tool etc. Platen sizes 300 sq + 400sq and other upon request. Options for programmable pressure/position - cooling - high temp. Pneumatic front gate.



P

.



Laboratory & Production  Presses .

. .    Click here to enlarge

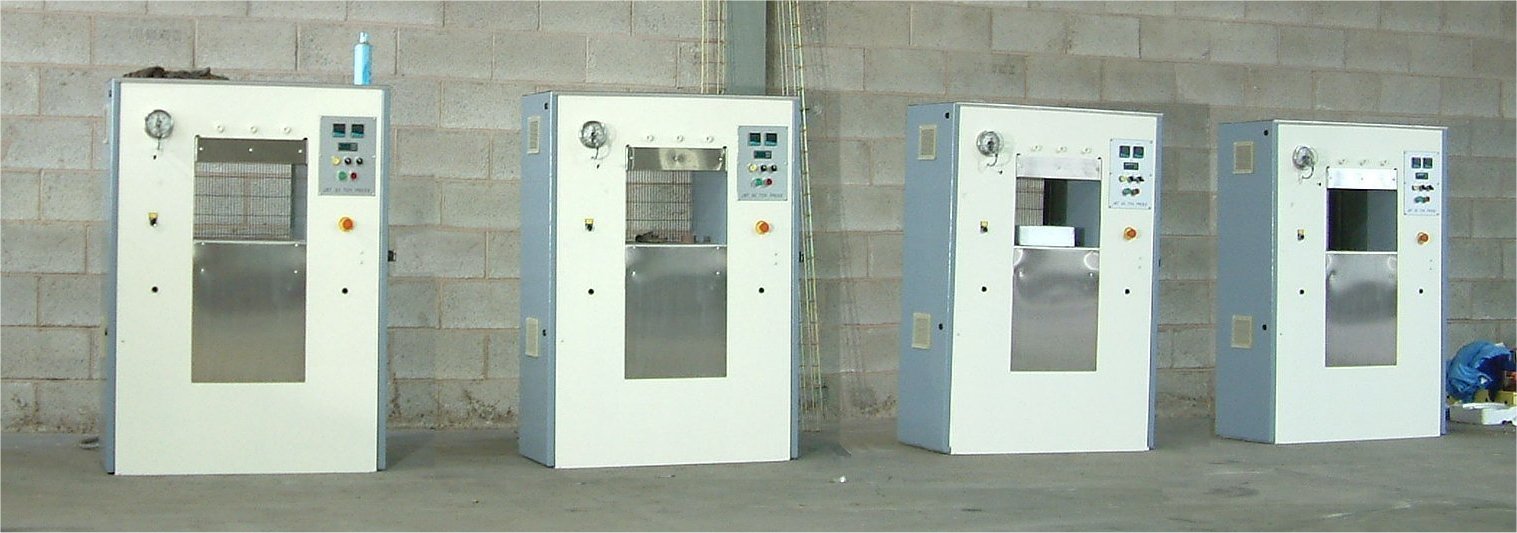

Set of  40 Ton 400mm sq  Laboratory & Production  Presses .

Click here to enlarge





air of 40T presses supplied to automotive rubber development laboratory

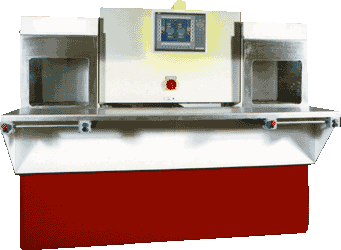

Twin Lab press / Production cell - 100T upstoke.

Fully automated press cell line with touch screen for cycle set up and temperatures. Low noise - leak free hydraulics. Fully integrated unit - just place in position and connect to Mains electricity and its ready to run. - Advanced Energy saving features on hydraulics and heating plates result in lower running costs - ergonomic and advanced design - lower running costs and setup time mean more retained profits.

Designed to be low maintenance- low noise and minimum floor area. Essential equipment for today's mould shops and specialised seal manufacturers.


STANDARD & ENHANCED  SPECIFICATIONS

  • Steel Frames for a rigid machine
  • Integrated Hydraulics for Low level noise
  • Push button control as standard
  • Semi-automatic or fully automatic control.
  • Platen types to suit your conditions
  • Suitable for use with rubber, plastics, metal ,powders, ceramics etc

OPTIONAL EXTRAS

  • Metering pump injection
  • Single or twin press cell
  • Run out tables
  • Controllable Fume extraction
  • Double or multi-daylight versions available
  • Push button control as standard with options of semi-automatic or fully automatic control
  • Vacuum versions available
  • Heated top daylight And water cooled bottom daylight
  • Pressure and temperature Monitoring



We also build Specialised test cells for shear - load - compression and most other applications.

Contact us for more information

  •

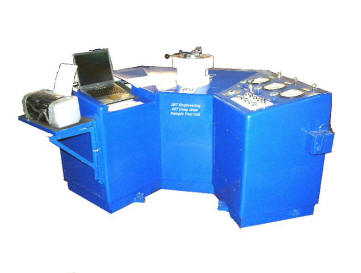

  • Shown here is a test press to evaluate the effects of lubricants for draw form and metal forming within the Aerospace component market sector.- A full computer data logging and analysis facility is also used to record and process the test results.
